Casting Clay Ceramic Pouring Cup for Gating System Excellent Shock Temperature

Brand Name : YH

Model Number : YH

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 10

Price : Negotiated

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10000pcs per month

Delivery Time : 10-30days

Packaging Details : by caront or wooden case

Dielectric Strength : 15 KV/mm

Chemical Composition : Al2O3 (Aluminum Oxide)

Color : White Or yellow

Electrical Insulation : Excellent

Operating Temperature : Up to 1700°C

Low Thermal Expansion : Excellent

Biocompatibility : Yes

Alumina Content : 95-99.7%

Flexural Strength : 300 to 400 MPa

Thermal Conductivity : 20 to 30 W/m·K

Machinability : Difficult

Maximum Use Temperature : 1700c

Transparency : Opaque

Surface Finish : Polished

Contact Now

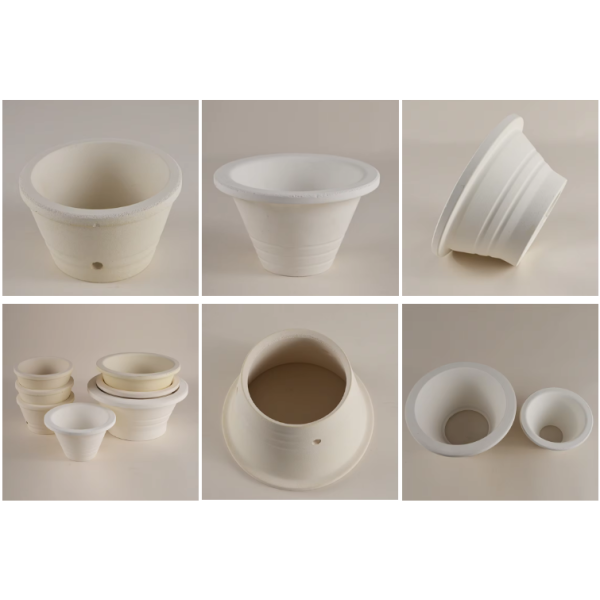

Casting Clay Ceramic Pouring Cup for Gating System Excellent Shock Temperature

Clay Ceramic Casting Pouring Cup – Easy to Use, Stable Quality!

5-step usage: Prep → Install → Pre-heat → Pour → Cool. Tips: Slow preheat to 600°C first use,

no sudden temperature changes, natural cooling. High-temperature resistant, durable, suitable for various metals. Ideal for foundries & casting lovers.

Shop now for the best pouring cup!

Material: high alumina silicate Operating temperature (C):1650 Flexural strength at room temperature (MPa):>10

Coefficient of thermal expansion: 8~9x10-6 Application range: high-temperature alloy, stainless steel

Premium high-temperature resistant pouring cups designed for precision investment casting. Made from specially formulated clay

ceramics, these cups withstand temperatures over 1600°C without cracking, ensuring smooth metal flow and minimal thermal shock.

Casting Clay Ceramic Pouring Cup for Gating System Excellent Shock Temperature

Application of Clay Ceramic Casting Pouring Cup:

* Aerospace component casting

* Jewelry and ornament casting

* Industrial part manufacturing

Mechanical Properties

Standard Sizes

Model	Top Diameter	Bottom Diameter	Height	Capacity
PC-50	50mm	20mm	60mm	80ml
PC-75	75mm	30mm	80mm	200ml
PC-100	100mm	40mm	100mm	400ml
PC-150	150mm	60mm	120mm	1000ml

Technical parameters
Bulk density kg/cm3	Cold compressive strenght MPa	Thermal expansivity 1000°C K-1	Thermal conductivity 600°C W/m.k	Working temperature°C
>1.9	>15	1.65*10^-6	0.76	1650

Chemical composition

SiO2	ZrO4	Al2O3	TiO2	Fe2O3
80.0%	20.0%	0.086%	0.032%	0.008%

We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic

Our Technical Expertise: The Reason to Choose Us
Advantage:


Withstands temperatures above 1600°C without cracking or deformation

Precise dimensional control ensures consistent casting processes

Low thermal expansion reduces stress during metal pouringAutomated production ensures uniform quality batch-to-batch

No harmful emissions, meets environmental standards

Casting Clay Ceramic Pouring Cup for Gating System Excellent Shock Temperature

Exhibition

FAQ

Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
